The powerful and leading-edge reader /sorter
for complex banking operation.

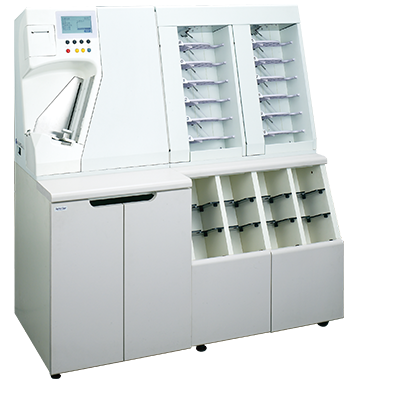

ADC-6000 obtains the color image and
MICR data on the check at once.
(As of Jul. 2016 in Japan)
More than 1000 units were installed in quality- demanding Japanese banks.
| Name | ADC-6000 | ||
|---|---|---|---|
| Model | ADC-6000-100 (standard) |
ADC-6000-110 (gray) |
ADC-6000-120 (color) |
| Character to read | E13B / CMC-7 (separate consultation) | ||
| Document size | length: 84～120mm × width:169～230mm |
length: 84～100mm × width: 169～230mm | |
| Processing speed | approx 300 documents/min |
approx 200 documents/min *1 |
approx 250 documents/min *2 |
| Capacity of feeder | approx 500 documents *3 | ||
| Capacity of pocket | approx 200 documents/pocket *3 | ||
| Number of pocket | 6～48 pockets | ||
| External connection | RS232C (D-SUB 9P) | RS232C(D-SUB 9P)+USB(image) | |
| Outline dimensions | 1250(W) × 580(D) × 1345(H) mm *convex not included | ||
| Weight | approx 180 kg (body + 12 pockets) *when image scanner is not included | ||
| Power | AC100V-220V 50/60Hz | ||
| Power consumption | 200W (at body + 12 pockets) | ||
| Option | stamp unit (back: exchange mark, date) *4 Inkjet printer (back: date) *4 | ||
