Basic performance

◆ Accurate MICR printing
Accurate and field-proven MICR
printing technology
◆ Encoding Speed is 65docs/min
Average 6 columns encoding
◆ Inkjet Printer Unit
The Inkjet Printer can print two different information at once at each desired height

Easy Operation

◆ Compact and Sophisticated design
◆ Visible Auto Feeder
◆ MICR Ribbon Cassette can be easily exchanged
Cassette MICR ribbon does not make your clothes dirty when exchanging the ribbon.

Application

◆ Amount printing on out-clearing cheques
  • Amount printing at each sales branch
  • Amount printing at Headquarters operations concentration section
◆ Printing on non-printed area of in-clearing cheques at operations concentration-section ( ex. amount printing, etc. )
◆ Issuance of bill and chequebook at each sales branch
◆ An Inkjet Printer for front side printing
  • Drawerʼs name
  • Bank name
  • Cheque number
  • Account number
  • Branch name

Introduction video

Body Specifications

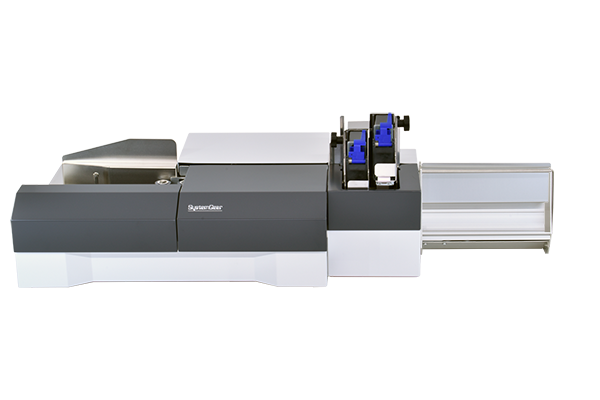

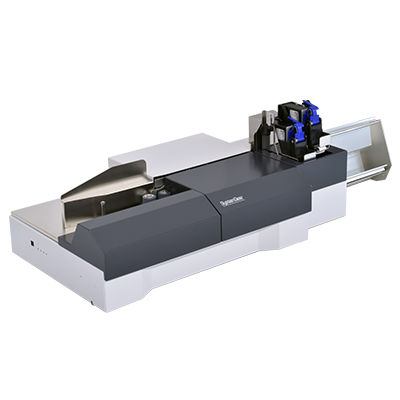

Name ADC-410
Printing Character E13B
Paper Standard Bank cheque ( ANSI X3.3 – 1970 )
Encoding Columns 65 Characters
Processing Speed 65 Documents ( or more ) per Minutes
Capacity of Hopper 300 Documents / Max
Capacity of Stacker 200 Documents / Max
MICR Ribbon Ribbon Cassette

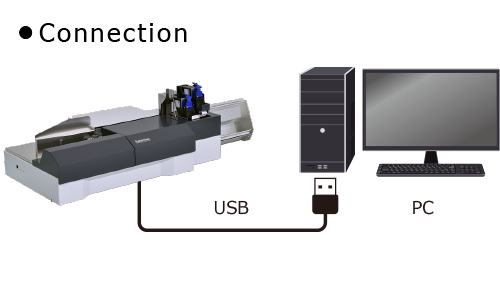

External Connection USB2.0 ( Online Controllable )
Dimension W : 817mm， H : 230mm, D : 333mm ( Include Stacker )
Power Requirement AC100-240V 50/60Hz
Power Consumption ≤150W
Weight 15kg

Inkjet Printer Unit

IJP Print Head 2 Heads ( print on the front of cheque )
Print Area W : 170mm, H : 12.7mm / per Head
Printing Position Vertical : 25-100mm from the bottom edge of document
Horizontal : 250mm from the right edge of document
( unprintable area 5mm from the edge )
Font Character Alphanumeric Character
Font Size H : 4mm
Bitmap Printing Signature, Stamp, Logo, etc. ( 10 patterns can be registered )
Printing Color Black
Print Height Adjustment Manual Operation
Print Speed 65 Documents ( or more ) per Minutes Include MICR Encode Print

SystemGear Co., Ltd.
