Explosion proof compact PoE network camera EXP-C01

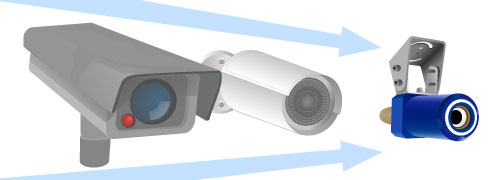

The world's smallest class PoE network camera for hazardous area.

◆ Extremely compact body; approx. 1/2 volume of the conventional small type explosion proof cameras.: Dimension: 65 mm (W) x 65 mm (H) x 125 mm (D)

Easy installation on site

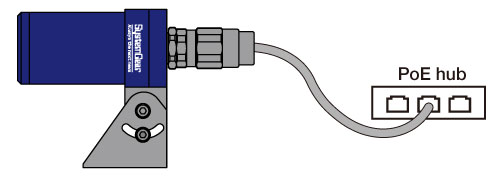

◆ Flexible angle and easy installation in any location. ◆ No power supply installation work required.: Only one cable enables PoE power supply and image data transmission.
*In explosion proof areas, wiring must conform to explosion proof structures.

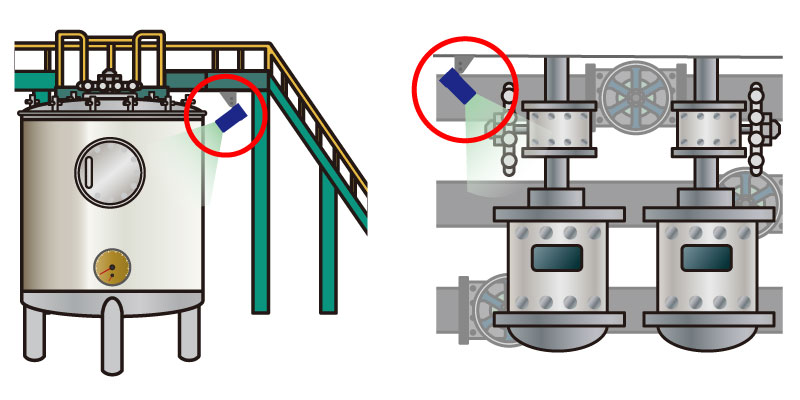

Flexible angle and easy installation in any location

Intelligent camera mounted

Mounted with an intelligent camera with a viewpoint correction function, there's no worrying about the installation direction. You can check the corrected image in real time.
*Camera configuration tool is included.

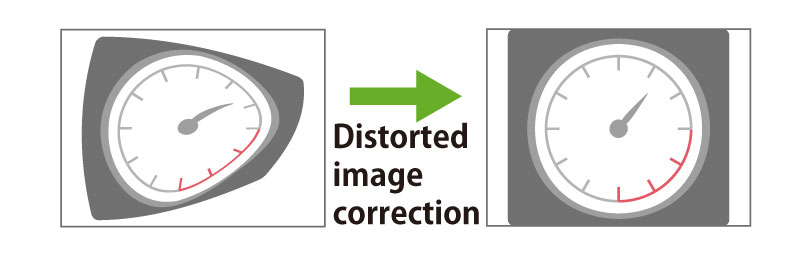

◆ Distorted image correction: Even if it's not possible to install the camera in front of the meters, you can monitor corrected image.

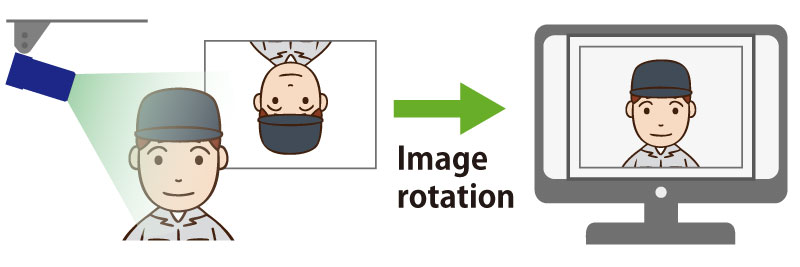

◆ Image rotation: It's also applicable to a short-distance face recognition system.

Application

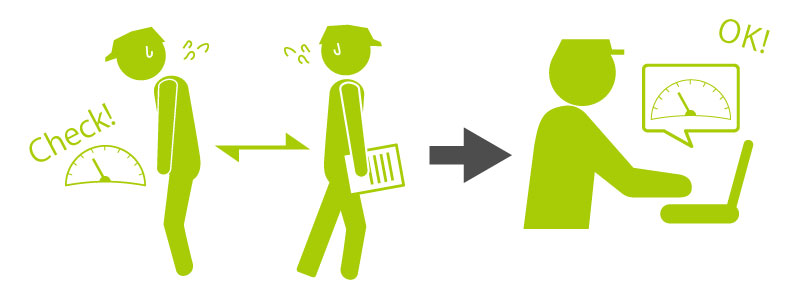

◆ Monitoring for sight glass fluid flow / liquid level status: By installing this camera, it's possible to constantly monitor the liquid flow and liquid level without deploying personnel and going to the site over and over.

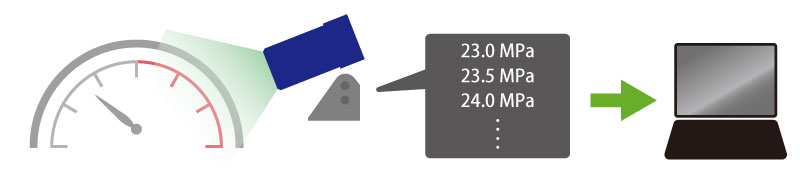

◆ Digitization for analog meter: Using our camera with AI meter reading software, you can digitize analog meter automatically. This solution reduces the time and efforts for surveillance.
* For an example, see the introduction video below.

Introduction video

In this video, you can get to know how small the camera is. Also, you can know an example of "Digitization for analog meter" using AI meter reading software. When the meter exceeds a preset threshold, the AI generates an alert.
This solution accelerates digital transformation for hazardous area as an Retrofit IoT solution.

Specifications

Name		Explosion proof compact PoE network camera
Model		EXP-C01
Type of protection / mark		Ex d ⅡC T5 Gb
Certification		JAPAN (JPEx) No. TC22644X as Flameproof structure
Camera	Image sensor	CMOS color sensor
	Pixels (max.)	640 (H) x 480 (V) 300,000 pixels
	Shutter method	Rolling shutter
Lens	Sensor size	1/4 type
Lens	Angle of view	Standard lens: Vertical 34° Horizontal 44° Diagonal 52° (Optional lens: Vertical 54° Horizontal 74°)
Video	Frame rate	60fps maximum
Video	Compression format	Motion JPEG
Software	General setting & monitoring	Configuration & monitoring tool included
	Image rotation	Horizontal flip / Vertical flip
	Viewpoint conversion	Image can be cut out by specifying 4-point coordinates.
Dustproof and waterproof	IP Code	IP65
LAN network	protocol	UDP
Cable	LAN	100BASE-TX (*1)

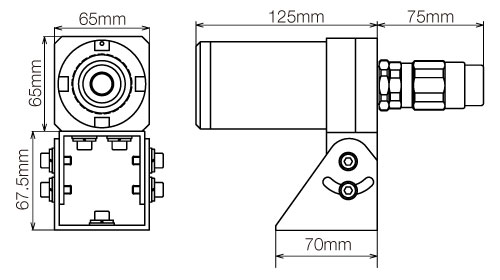

Installation	External dimensions	Body / Width: 65 mm, Height: 65 mm, Depth: 125 mm (not including cable gland) Stand / Width: 65 mm, Height: 67.5 mm, Depth: 70 mm (not including bolts)
	Weight	Body + Stand = Approx. 1.5 kg
	Power supply	PoE
	Power consumption	Approx. 3W
	Installation environment	Ambient temperature: −10℃ to 45℃ Ambient humidity: 20 to 85% (during operation) No condensation, no icing

* 1: LAN cable is not included. For LAN wiring, perform explosion-proof electrical work wiring in consideration of external damage protection and chemical resistance according to the explosion-proof environment.

*The specifications, standards and appearance of this product are subject to change without notice for improvement.
